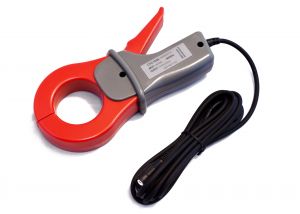

1000A AC Current Clamp Adapter with BNC Plug
Professional measuring transducer that allows accurate measurements of high currents up to 1000 A AC in conjunction with a measuring device with BNC connection. The large opening of the round measuring tongs with handle for one-hand operation and the high cable length allow measurements even at large conductor diameters at more distant measuring locations. This current clamp adapter is ideally suited as an accessory for power meters, power analyzers and oscilloscopes.
- Also suitable as an accessory for the PeakTech 4145 power analyzer
- For cunductor diameters of max. 52mm
- Cable length: approx. 290cm
- Power conversion: 1mV / A
- Accuracy class: IEC 60044-1 @ 1%
| ACA | 0,5 … 1000 A AC |
| ACA-Frequency | 50/60 Hz nominal (40 … 1 kHz max.) |
| Accuracy | +/- 1% (48-65Hz / 25°C+/-3°C) |
| Burden Resistance | < 10Ω |
| Max. non-destructive current | 2000 A |
| Safety | CAT III 600V |
| Dimensions (WxHxD) | 110 x 215 x 45 mm |
| Weight | ca. 700 g |
| EAN-13 | 4250569404092 |
