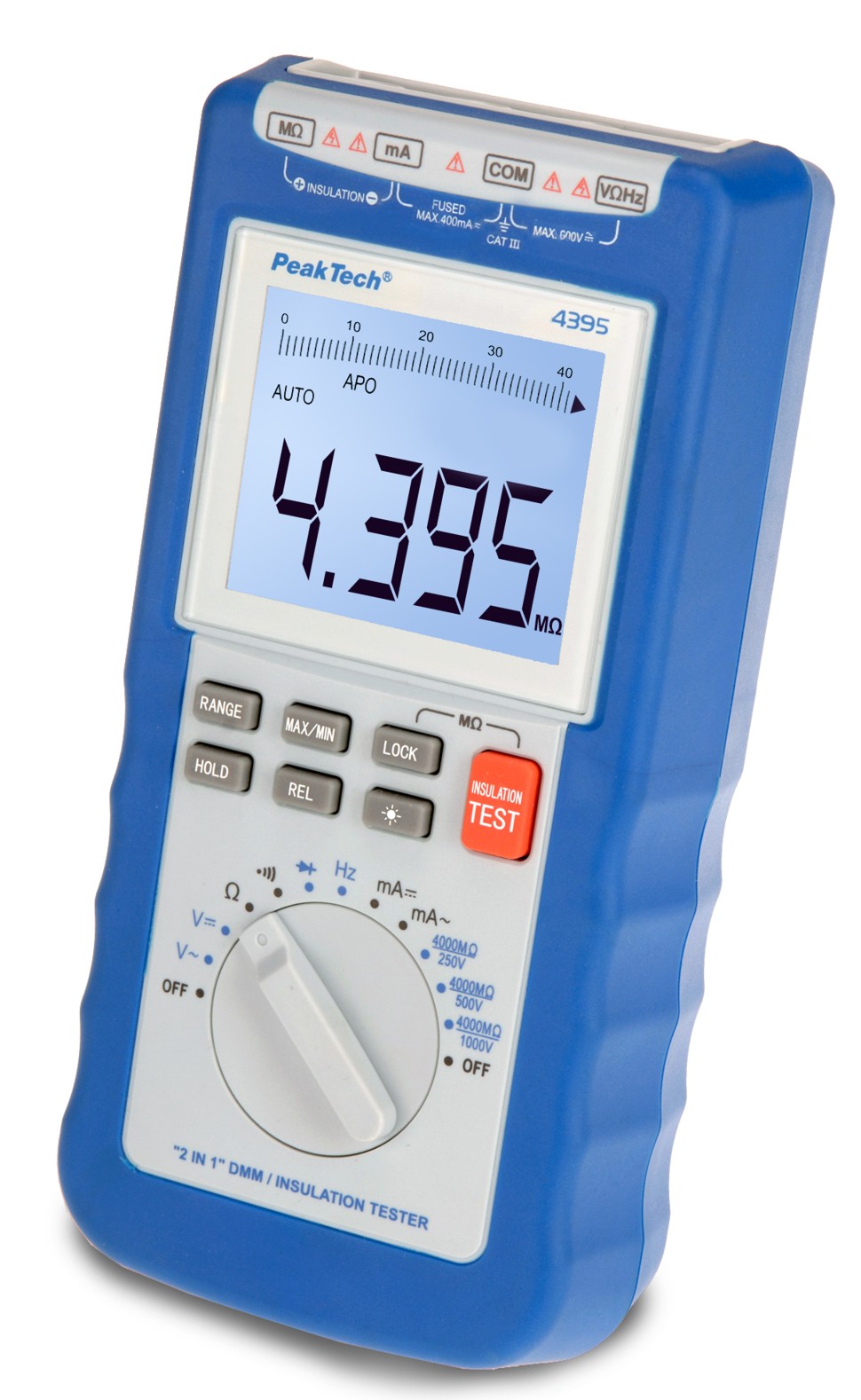

2 in 1 DMM/Isolationstester, 3 3/4-digit, 250/500/1000 V; 4.000 MΩ
Multifunction meter with integrated protection frame combins an automatic digital multimeter and insulation tester, ideal and essential for electrical installation. The 3 3/4-digit, 23 mm LCD-display (max. 3999) with function symbols, backlight guarantee easy and exact data aquisation. Measurements of DCV, ACV, DCA, ACA, Ohm, Freq., diode-, continuitytest and insulation measurements according to VDE 0413 part 1 are the most useful features.
- Auto- and manual range selection
- Data-Hold, auto power off, Rel.- and max-, min recording function
- Three insulation test voltage: 250 V, 500 V, 1000 V, timing function in insulation test, insulation test automatically stops 30 secs. later of
- Lock and unlock the insulation test manual
- Safety: EN 61010-1; CAT III 600 V

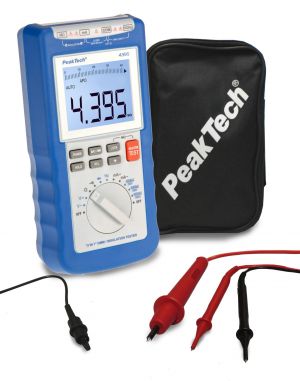

- Accessories: test leads, carrying case, battery and operation manual
| DCV | 400 mV/4/40/400/600 V; 100 µV; ± 0,8 % + 3 dgt. |
| ACV | 400 mV/4/40/400/600 V; 100 µV; ± 1,0 % + 5 dgt. Frequency range: 40 … 400 Hz |
| DCA | 40/400 mA; 10 µA; ± 1,2 % + 3 dgt. |
| ACA | 40/400 mA; 10 µA; ± 1,5 % + 5 dgt. Frequency range: 40 … 400 Hz |
| Isolationstest | 0,1 … 4.000 MΩ (250/500/1000 V); 0,1 MΩ; ± 5 % + 5 dgt. |
| Frequency | 4/40/400 kHz/4/40/100 MHz; 1 mHz; ± 0,8 % + 3 dgt. |
| Ohm | 400 Ω/4/40/400 kΩ/4/40 MΩ; 0,1 Ω; ± 1,0 % + 3 dgt. |
| Operation voltage | 6 x 1,5 V batteries AA |
| Dimensions (WxHxD) | 100 x 200 x 56 mm |
| Weight | 620 g |
| EAN-13 | 4250569401152 |
